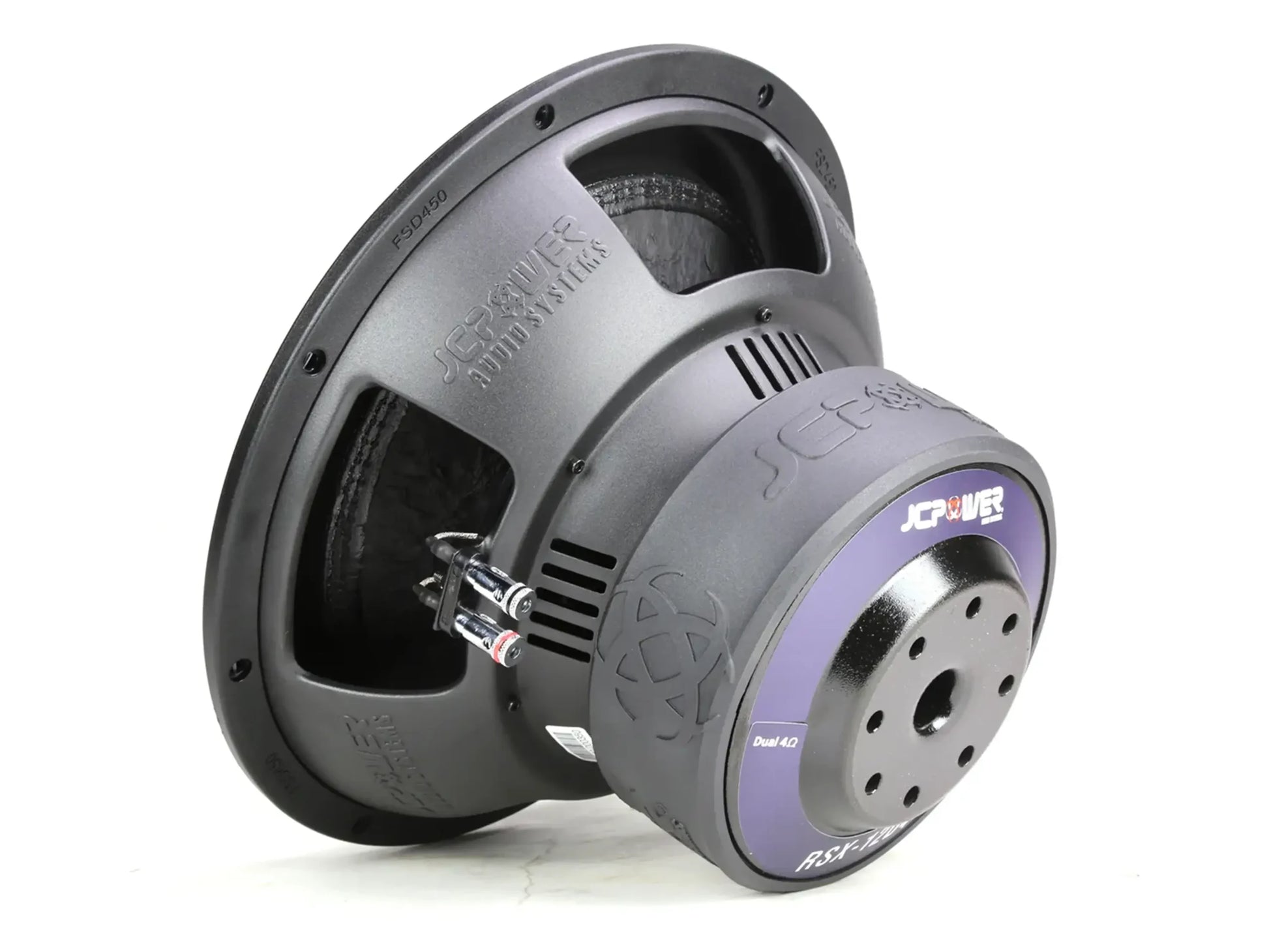

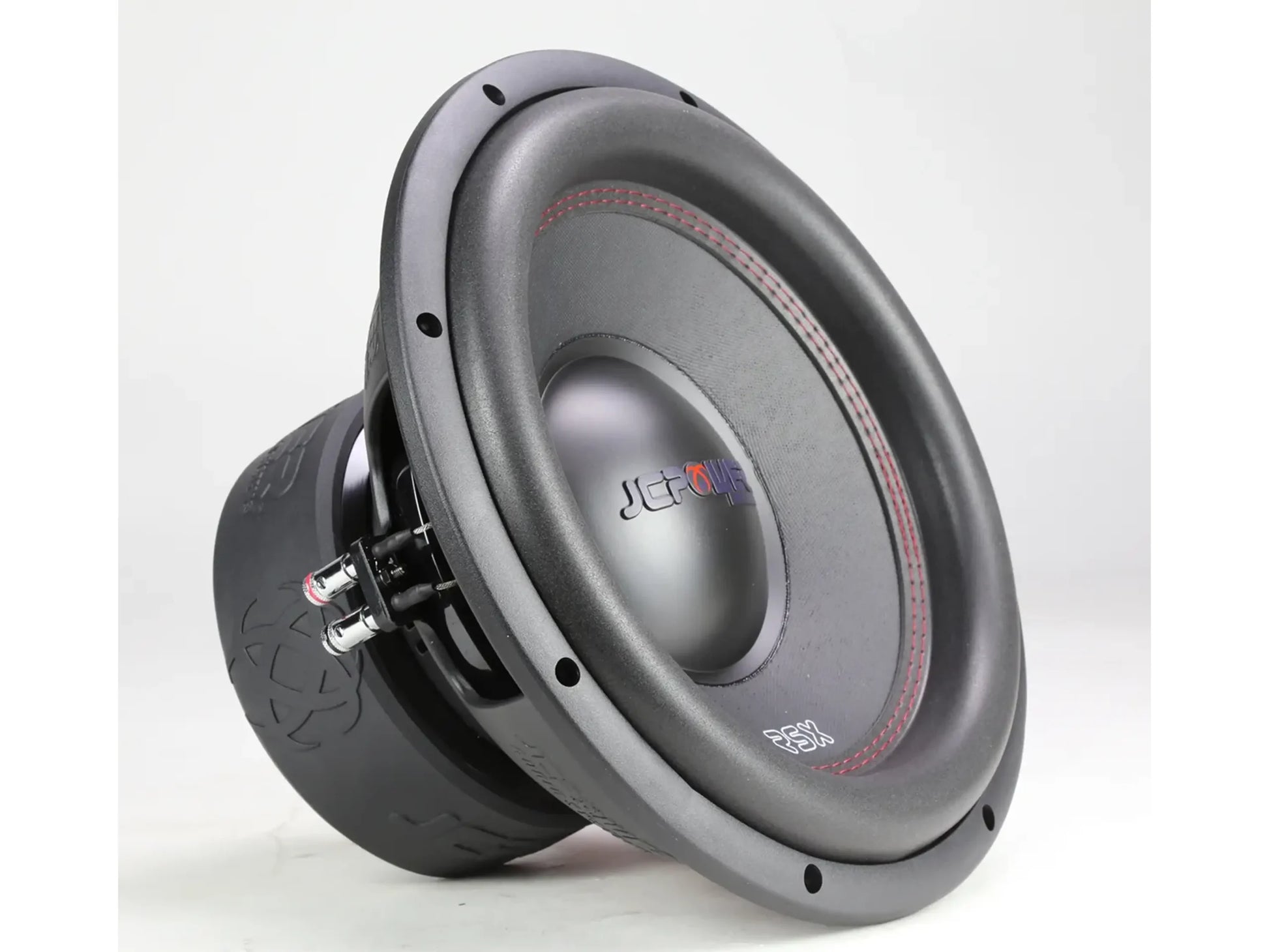

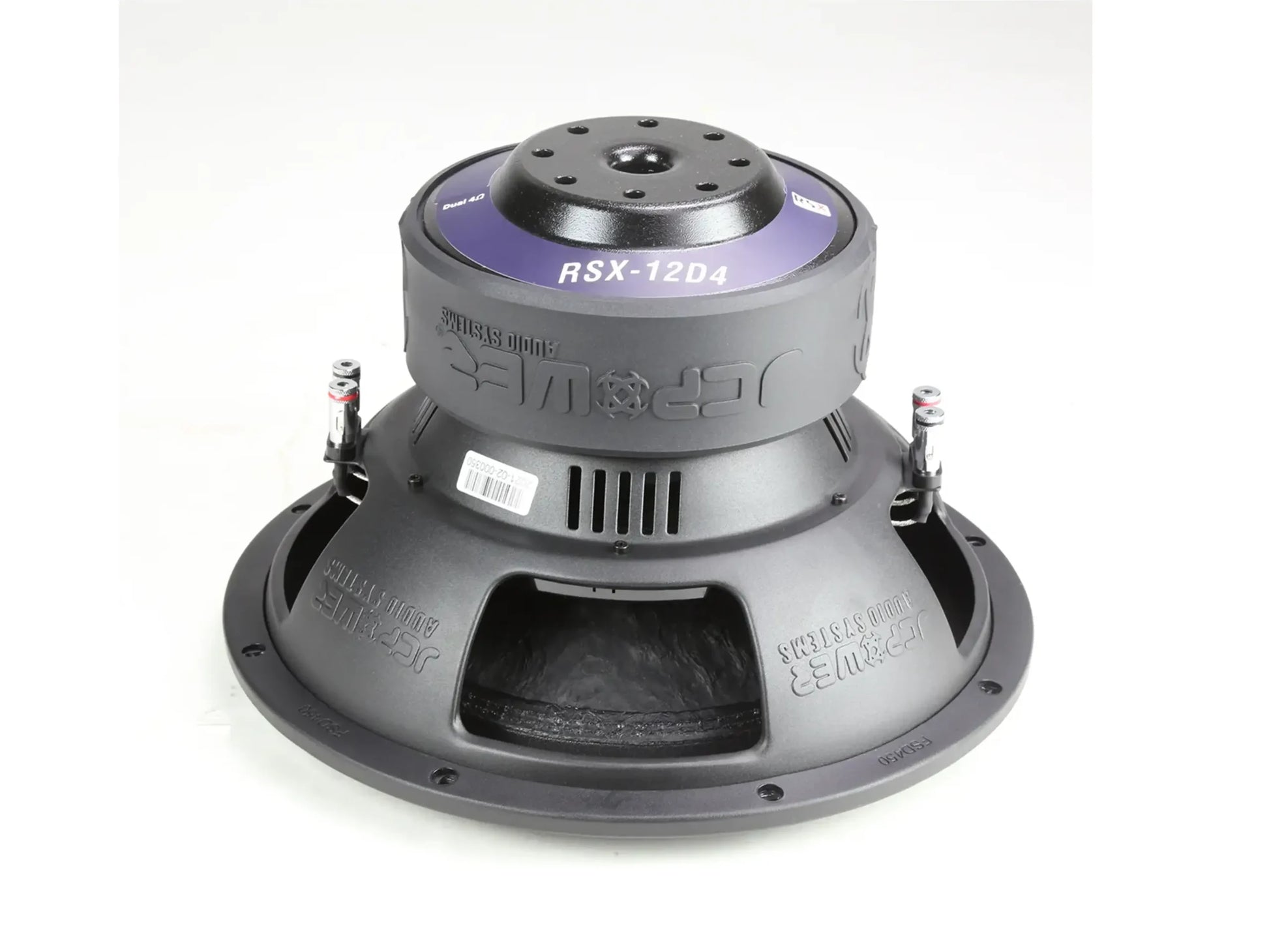

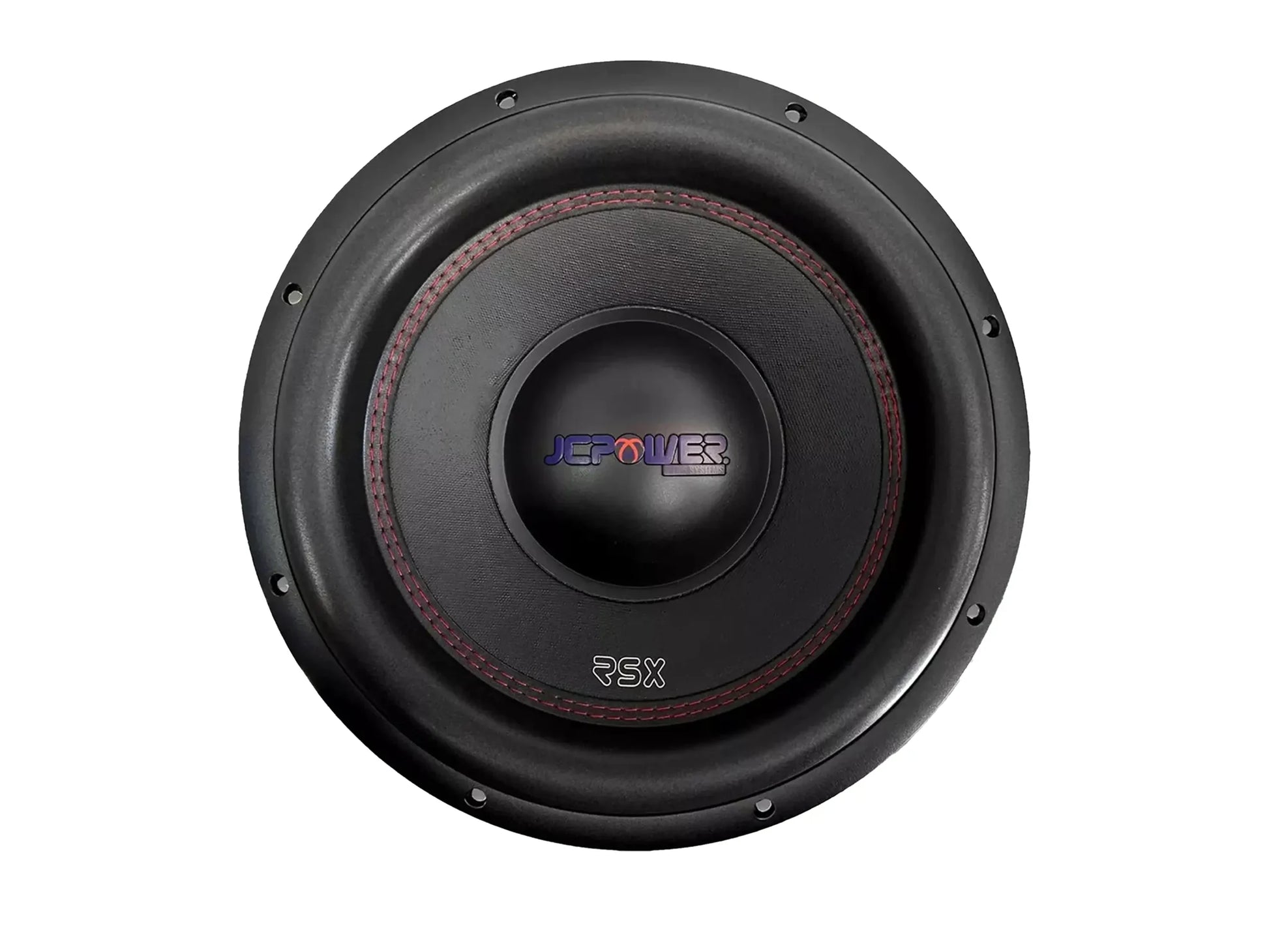

JCPOWER RSX-12D4 1600 Watt Dual 4-ohm Subwoofer
JCPOWER RSX-12D4 1600 Watt Dual 4-ohm Subwoofer
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Enhance your car audio with powerful bass with the JCPower RSX-12D4, a high-performance 12″ subwoofer designed for sound quality and impactful low-frequency performance. This 800 watt RMS subwoofer delivers accurate and detailed bass, making it a great upgrade for any car audio system, especially those seeking high-powered bass.
- Type: 12″ Subwoofer, 4-Ohm DVC
- Peak Power Handling: 1600 Watts
- RMS Power Handling: 800 Watts
- Sensitivity: 86.7 dB/W/M
- Frequency Response: 38Hz – 300Hz
- Features: Dual 4-ohm voice coils
- Benefits: Designed for sound quality and high power handling, works great with various amplifiers, ideal for single or dual subwoofer setups
| Subwoofer Size |
12" |
|---|---|
| Voice Coil Configuration |
Dual Voice Coil (DVC) |
| Overall Dimensions |
12.5" × 8.4" |
| RMS Power |
800w |
| Max Power |
1600w |
| Sensitivity |
86.3 lbs |
| Frequency Response |
38Hz – 300Hz |
| Cone Material |
Paper |
| Net Weight |
23.3 lbs |
| Nominal Impedance |
Dual 4Ω |
| DC Resistance |
Dual 3.2Ω |
| Voice Coil Diameter |
65.5mm |
| Voice Coil Height |
10mm |
| Gap Height |
10mm |
| Xmax |
15mm |
| Voice Coil Bobbin |
Black Aluminum |
| Voice Coil Wire |
Copper |
| Number of Layers |
4 |
| Magnet |
High Flux Ferrite |
| BL Product |
13.5 |
