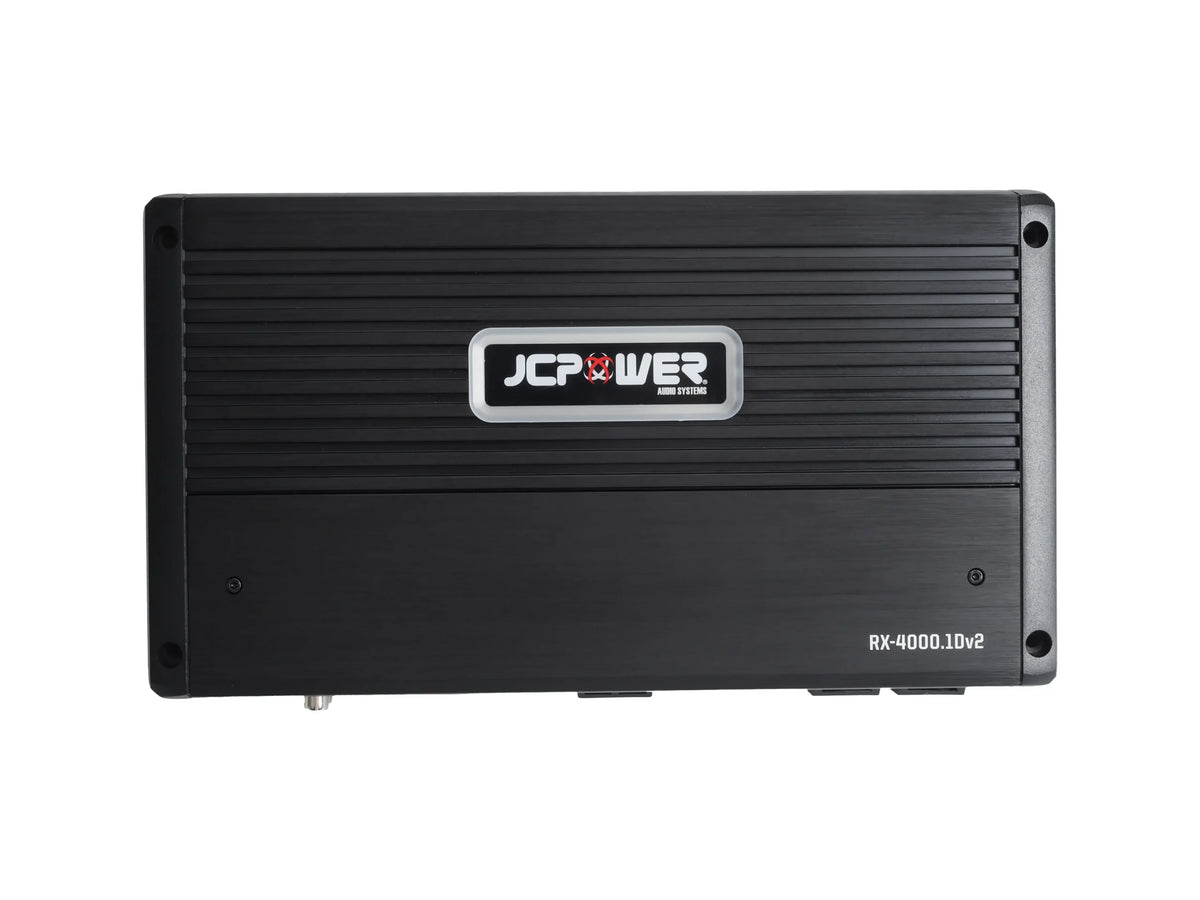

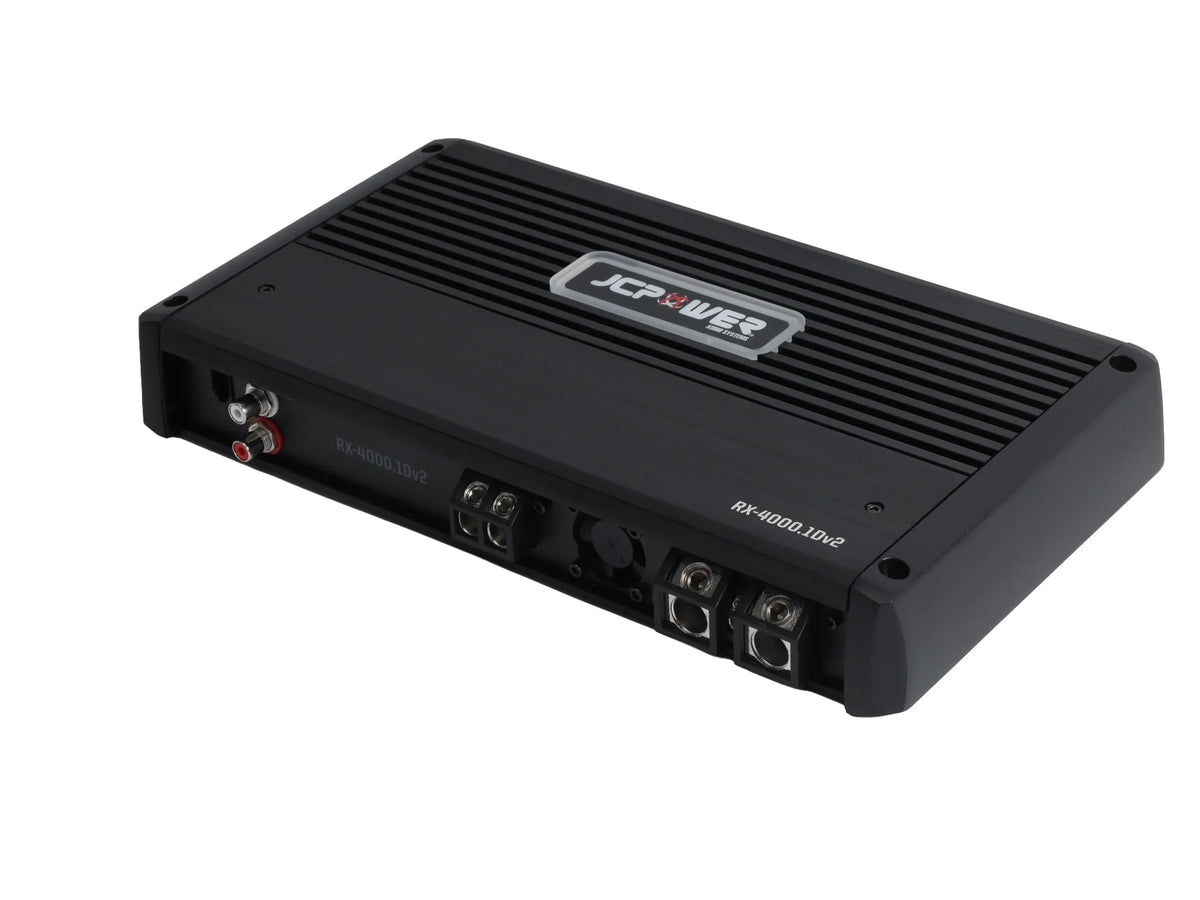

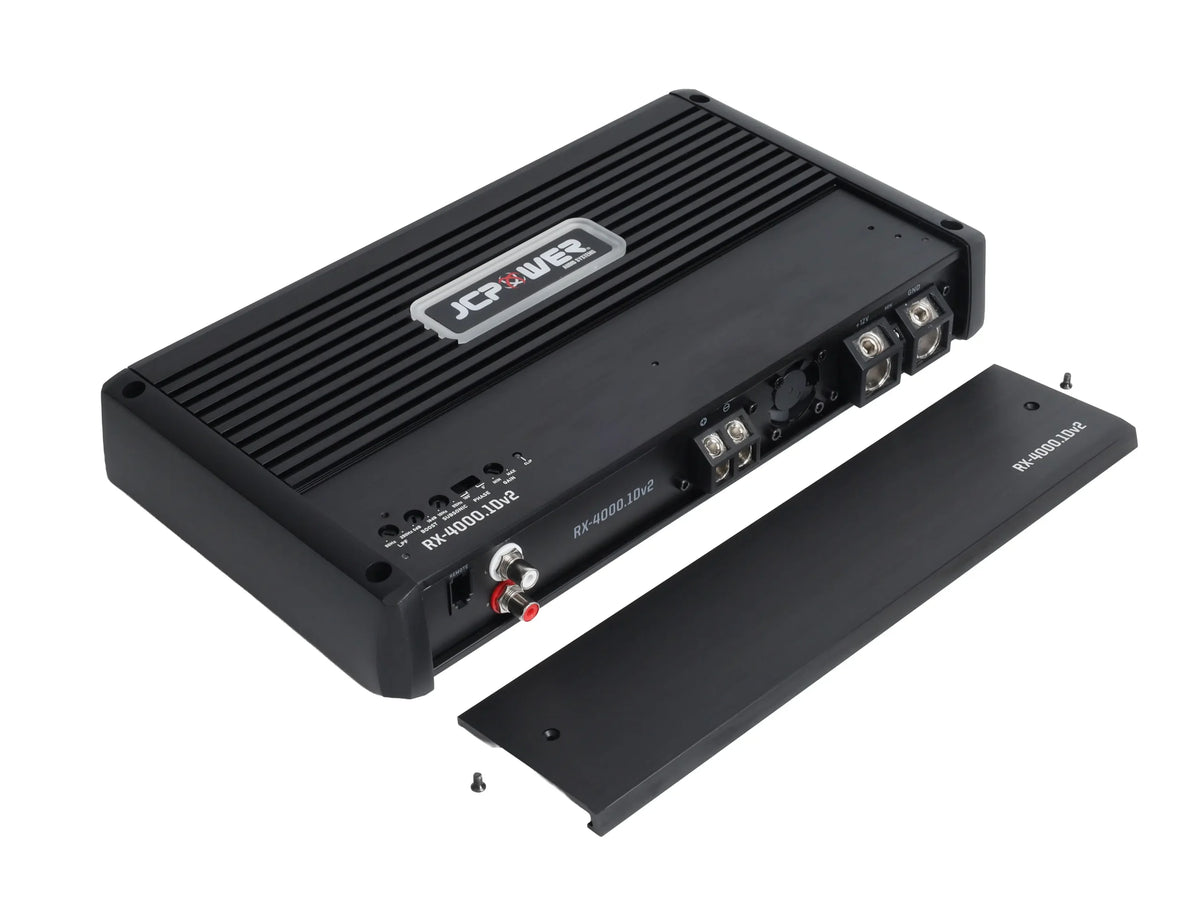

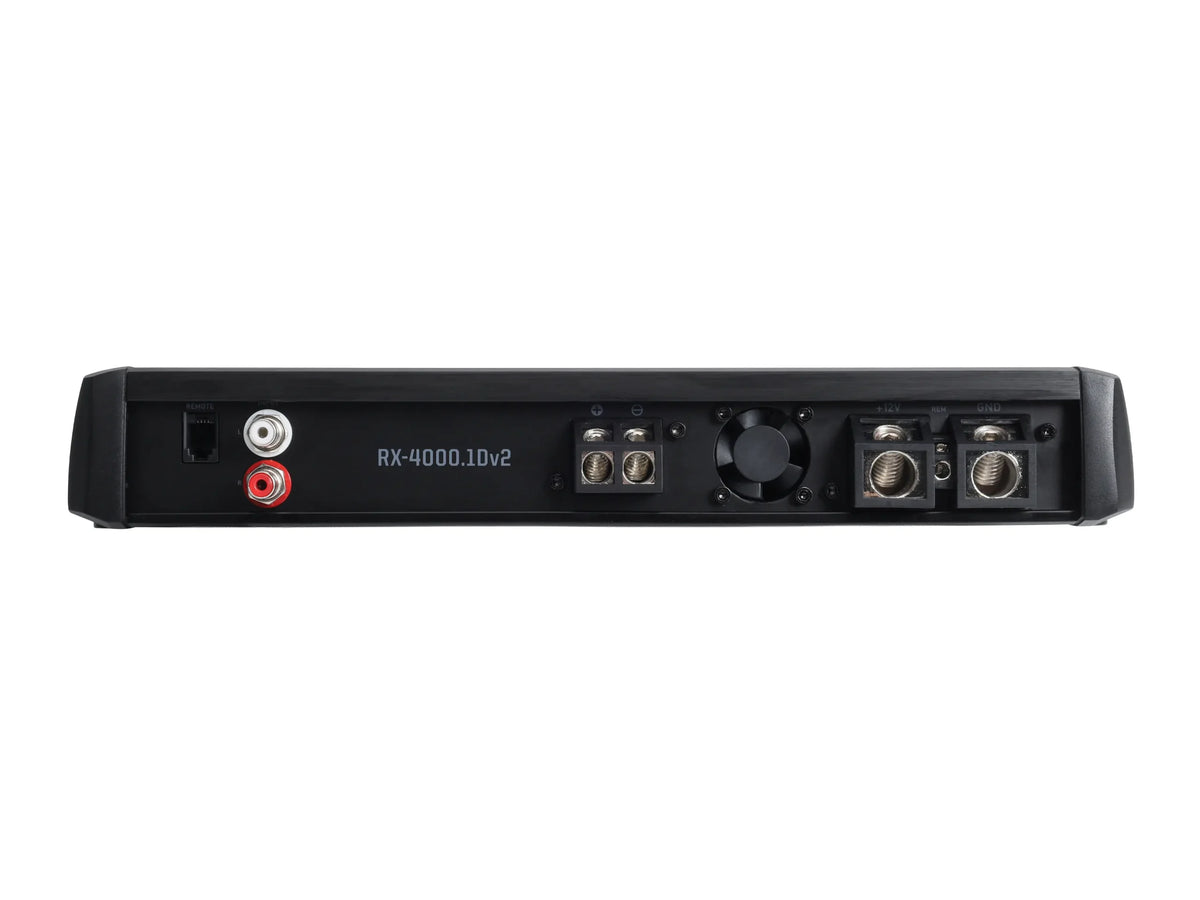

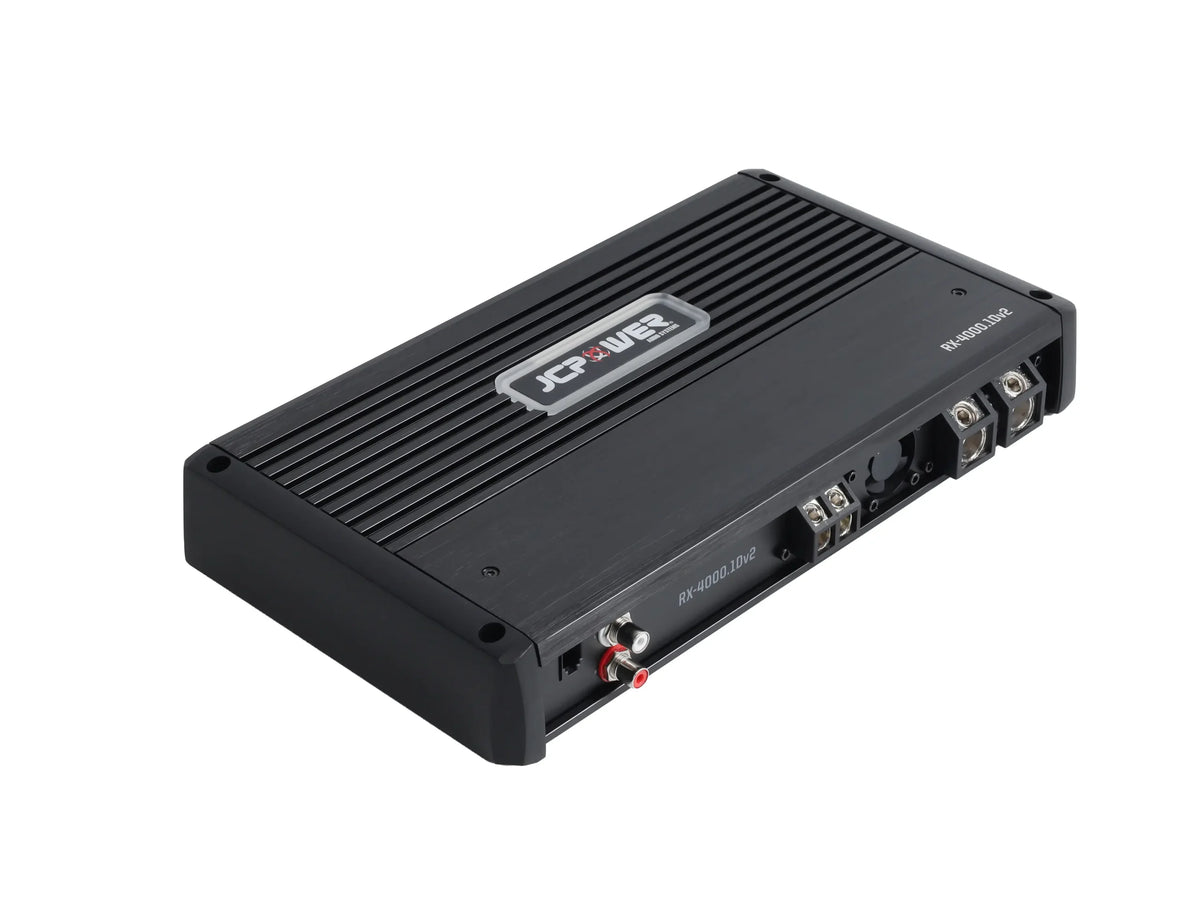

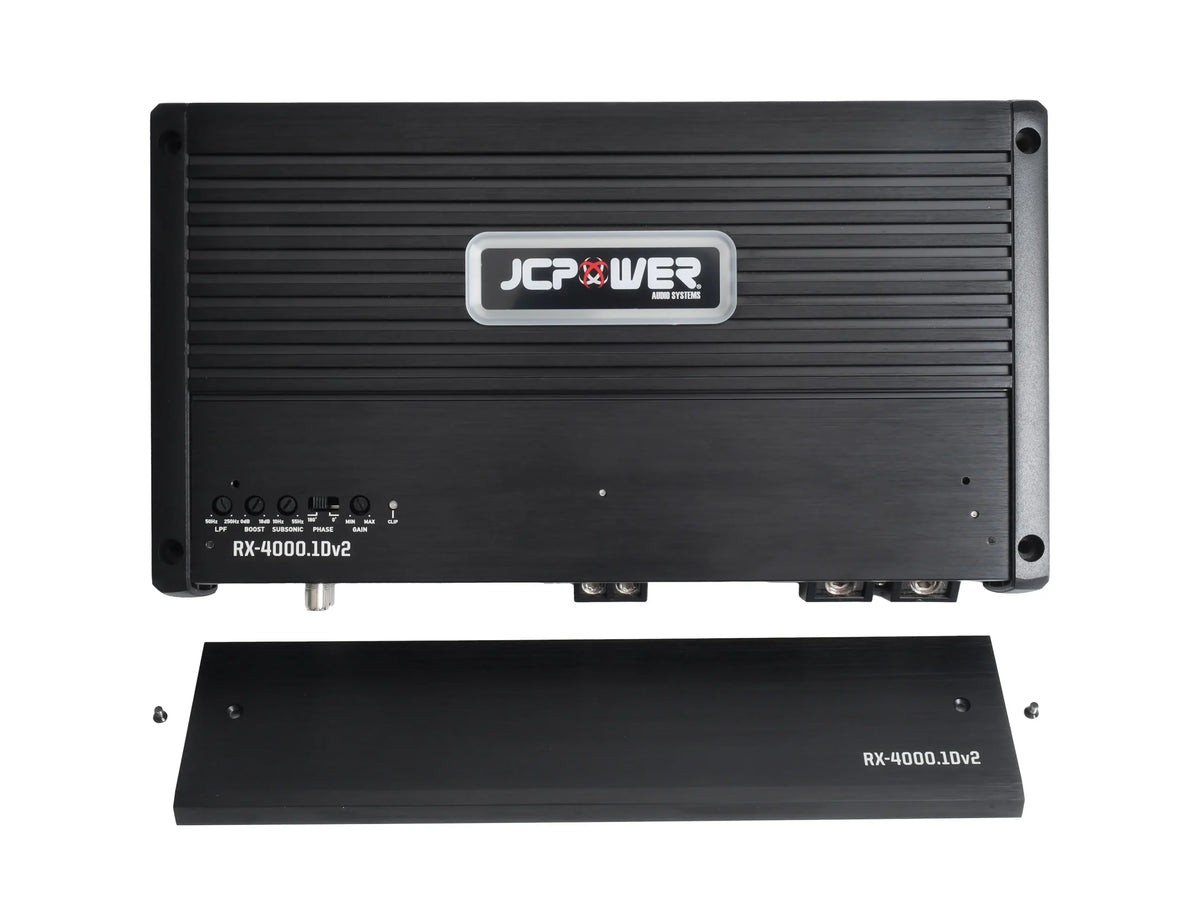

JCPOWER RX-4000.1Dv2 Class D Monoblock Power Amplifier
JCPOWER RX-4000.1Dv2 Class D Monoblock Power Amplifier
Couldn't load pickup availability
The JCPower RX-4000.1Dv2 is a monoblock Class D power amplifier that redefines power and performance for car audio enthusiasts. This second-generation powerhouse is engineered for those who demand the absolute best for their subwoofers, delivering earth-shattering bass and exceptional control with even greater efficiency and better heat dissipation than its predecessor.
Experience powerful bass without breaking the bank with the JCPower JC2000.1D, a 2000 watt amplifier designed for budget-minded audio enthusiasts. This Class D monoblock amplifier delivers impressive performance and value.
- Circuit Topology:Â Class D Monoblock Amplifier
- RMS Power (1 ohm): 2000W
- RMS Power (2 ohm): 1650W (Upgraded from 1380W)
- RMS Power (4 ohm):Â 920W (Upgraded from 900W)Â
- Dimensions (LxWxH): 12.37″ x 6.85″ x 1.89″ (314.2mm x 174mm x 48mm)
- Key Features:Â 1-ohm stable, 24dB Slopes, Subsonic Filter (10-55Hz), and included Remote Bass Knob.
-
Improvements:Â Enhanced heat dissipation and increased power output for more demanding subwoofer configurations.
General Specifications
| Amplifier Class |
Class D |
|---|---|
| Amplifier Type |
Monoblock |
| Bridgeable |
No |
| Circuit Topology |
Monoblock, Class-D |
| RMS Power Output at 1Ω |
2000w |
| RMS Power Output at 2Ω |
1380w |
| RMS Power Output at 4Ω |
900w |
| Total Harmonic Distortion |
<0.3% |
| S/N Ratio REF 1W at 4Ω |
>90 dB |
| Gain Range |
0.2-10V |
| Per Octave Slopes |
24 dB |
| Crossover Range |
50-250Hz |
| Operation Frequency Range |
20-500Hz |
| Subsonic |
10-55Hz |
| Bass Boost |
0-18dB |
| Bass Knob |
Included |
| Dimensions |
12.38" × 6.85" × 1.89" |
